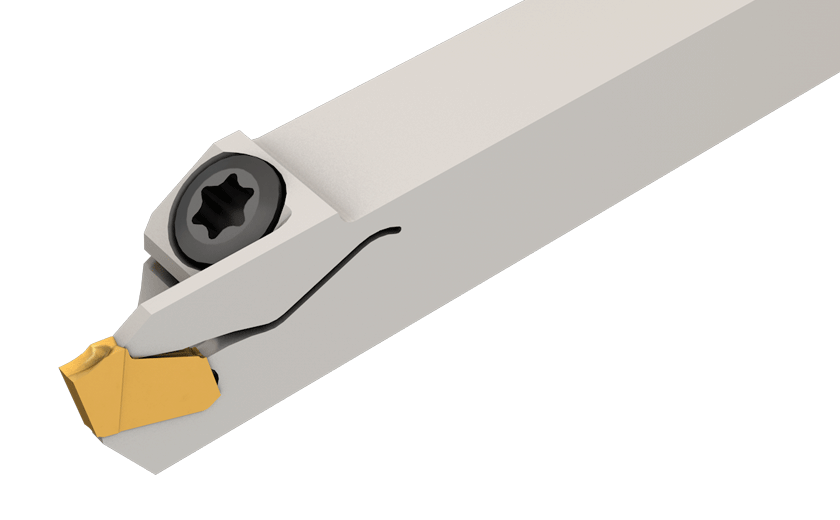

 Turn- Groove Parting Facing      Family: SGFR/L-B-D-SH Integral-Shank, Short Head, Parting and Grooving Toolholder, for CNC and Swiss Automatics       Designation: SGFL 12B-2D24 SH Cutting Conditions Machine Power

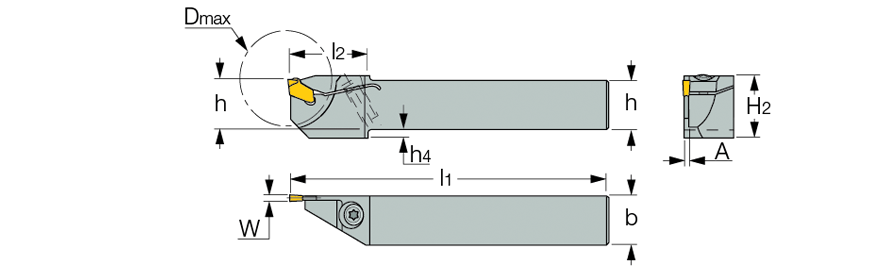

h W min W max D max h1 b A l1 l2 H2 h4 R/L
 12.0  1.80  2.69  24.0  12.0  12.0  1.60  140.00  18.0  13.0  -  L

  Catalog No
2D
3D
  2301512 Not Available

7000225  SR 16-236 P

7000265  T-15/5
