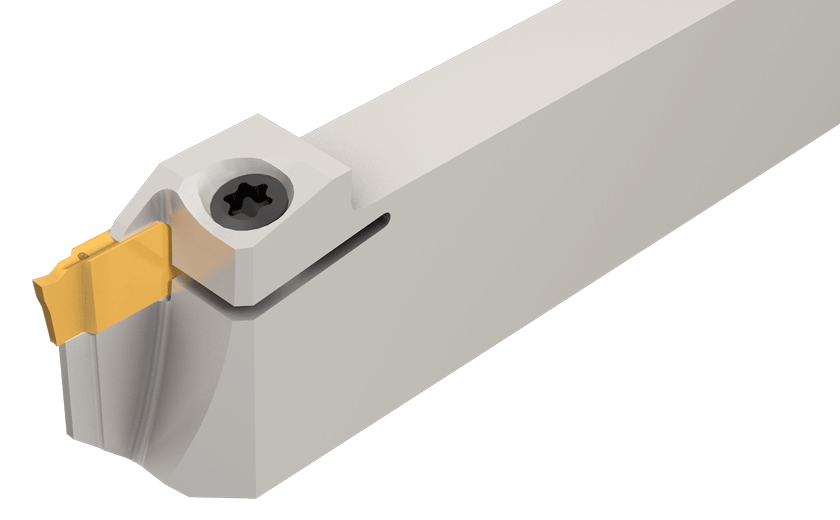

 Turn- Groove Parting Facing      Family: DGTR/L-B-T-SH Reinforced Parting and Grooving Toolholders for the DGN Double-Ended Inserts       Designation: DGTR 2009B-1.5T9 SH Cutting Conditions Machine Power

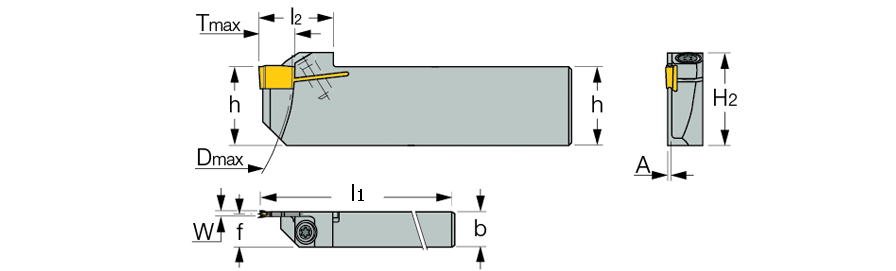

W min For DG: 1.0 insert - modify holder. W max h h1 b A f l1 l2 D max Tmax-r H2 R/L
 1.00  1.50  20.0  20.0  9.0  1.20  8.4  100.00  19.0  95.0  9.00  23.7  R

  Catalog No
2D
3D
  2301572 Not Available

7000225  SR 16-236 P

7000265  T-15/5
