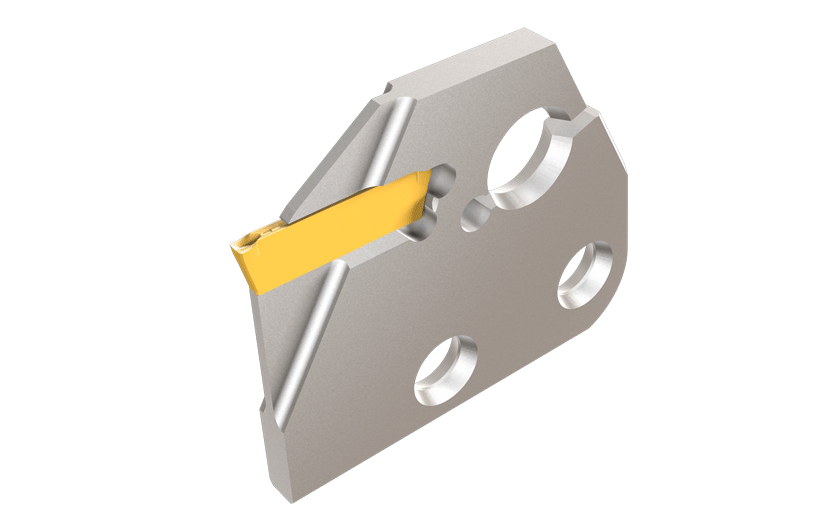

 Turn- Groove Parting Facing      Family: DGAD-B-D Parting and Grooving Adapters for Double-Ended Inserts, Used on Davenport HMSDV Machines       Designation: DGAD 1.5B-D20 Cutting Conditions Machine Power


W min For DG: 1.0 insert modified adapter. W max A2 A l1 D max h1 B1
 1.00  1.50  3.2  1.00  41.00  20.0  24.0  30.3

  Catalog No
2D
3D
  2399030
