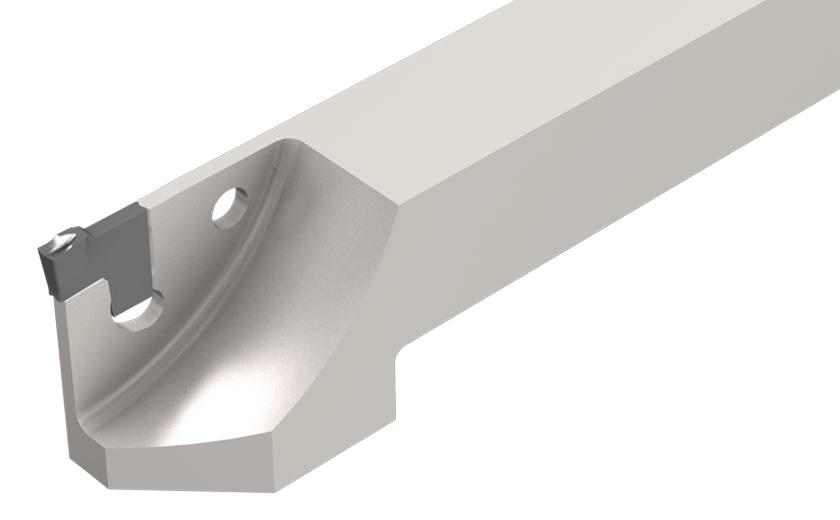

 Turn- Groove Parting Facing      Family: TGTR/L Integral-Shank, TANG-GRIP Parting and Grooving Toolholder       Designation: TGTL 1212-3 Cutting Conditions Machine Power

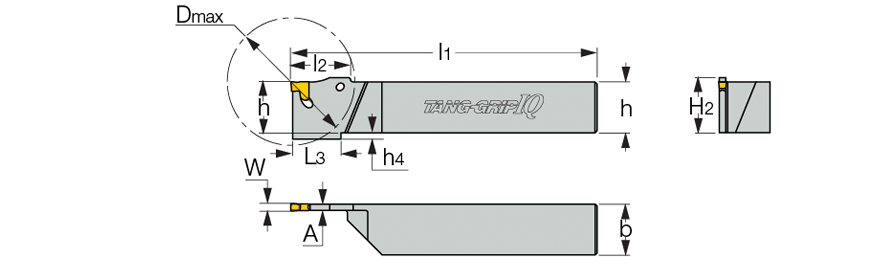

Ord W min W max h h1 b A l1 H2 l2 f h4 D max R/L
 5  2.80  3.50  12.0  12.0  12.0  2.50  150.00  19.0  -  19.50  7.0  32.0  L

  Catalog No
2D
3D
  2301913 Not Available Not Available

4305273  ETG 3-4-SH
(Optional, should be ordered separately)
