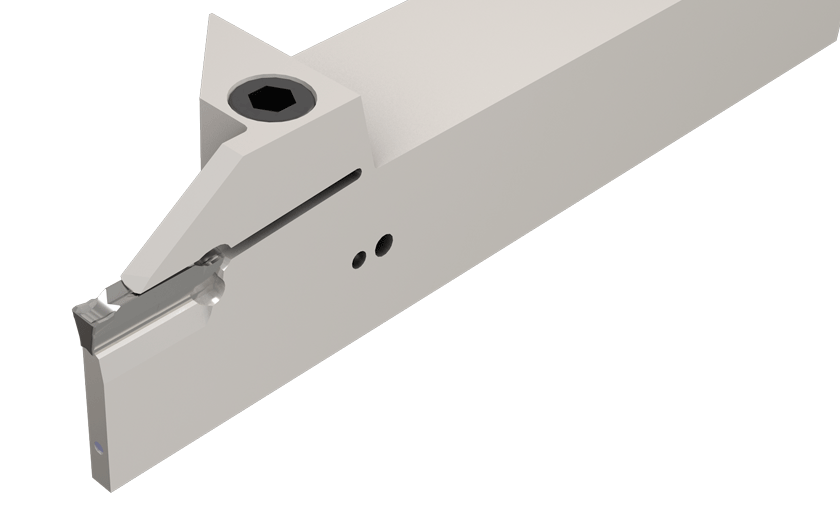

 Turn-Groove      Family: DGTR/L-BC-T Parting and Grooving Toolholders with Coolant Holes for JET-CUT Inserts with Coolant Holes       Designation: DGTL 25BC-4T25

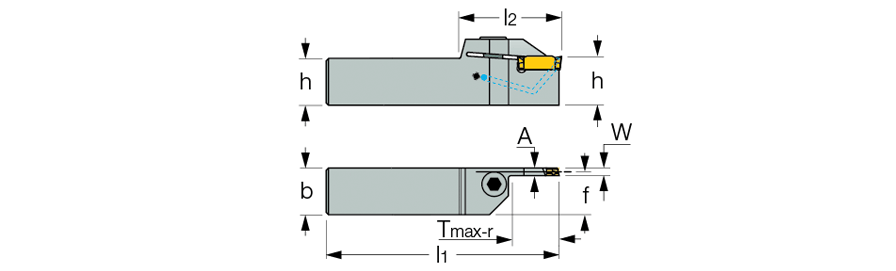

 Right-hand shown

Ext. Grooving   Parting   COOLANT
h b W min W max l1 A l2 Tmax-r R/L
 25.0   25.0   4.00   4.00   140.00   3.40   42.0   25.00   L

  Catalog No Primary View
File (2D)		 Auxiliary View
File (2D)		 Model (3D) Light Model (3D) Detail
  2301934 Not Available
3D Required		 Not Available
3D Required


4305948  HW 5.0  Details

7001841  SR M6X16DIN912  Details

7002073  CM 343 MALE CONN.
(Optional, should be ordered separately)

4300435  SGCU 341
(Optional, should be ordered separately)
