 Turn- Groove Parting Facing      Family: DGFHL-26B-TR-D Reinforced Type Blades with Screw Clamping for TRAUB and INDEX Machines       Designation: DGFHL 26B-2TR-D36R Cutting Conditions Machine Power

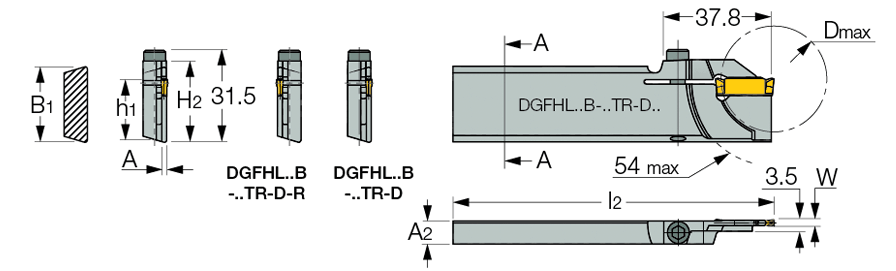

B1 W min For DG: 1.0 insert - modify holder. W max A A2 l1 H2 h1 D max The specified limit refers to the tool.
 26.0  1.00  2.50  1.60  7.9  110.00  27.9  21.4  36.0

  Catalog No
2D
3D
  2399644 Not Available Not Available

4395262  SR M5X20-01172 *

7000043  HW 4.0
