 Turn-Groove      Family: TGFH-MB Parting and Grooving Blades for Other Manufacturer's Blocks       Designation: TGFH 22MB-4-L90


Parting   Ext. Grooving

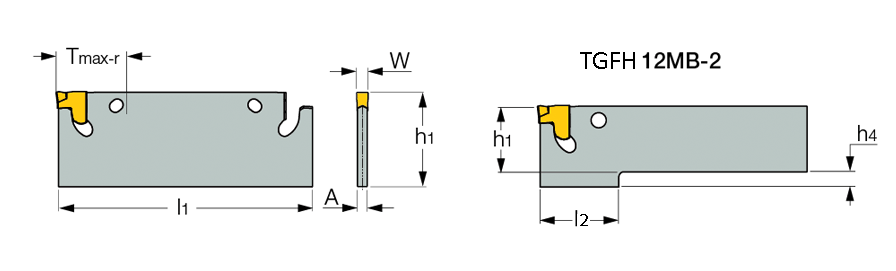

W min W max A l1 h1 h4 l2 Tmax-r
 3.70   4.50   3.40   90.00   22.2  --  17.00

  Catalog No Primary View
File (2D)		 Auxiliary View
File (2D)		 Model (3D) Light Model (3D) Detail
  2390169


4305273  ETG 3-4-SH
(Optional, should be ordered separately)
