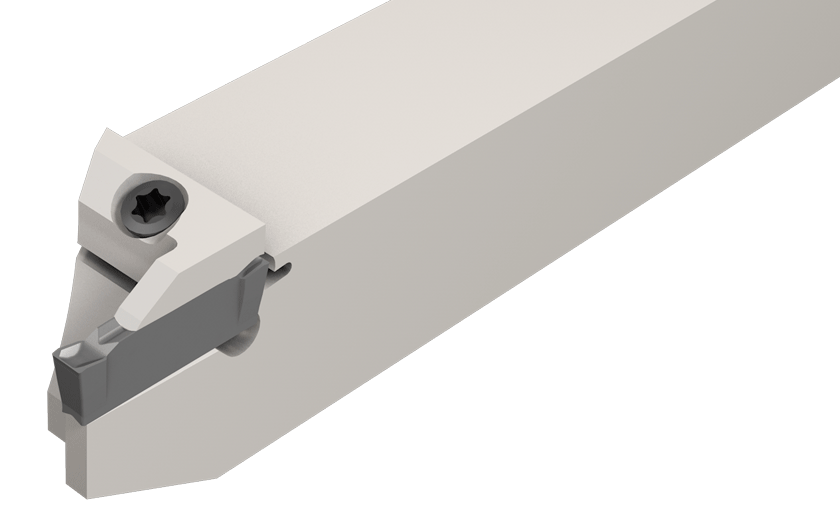

 Turn- Groove Parting Facing      Family: DGTR/L-B-D-SH Parting and Grooving, Short Head Toolholder, for CNC and Swiss Automatics       Designation: DGTL 20B-3D25SH Cutting Conditions Machine Power

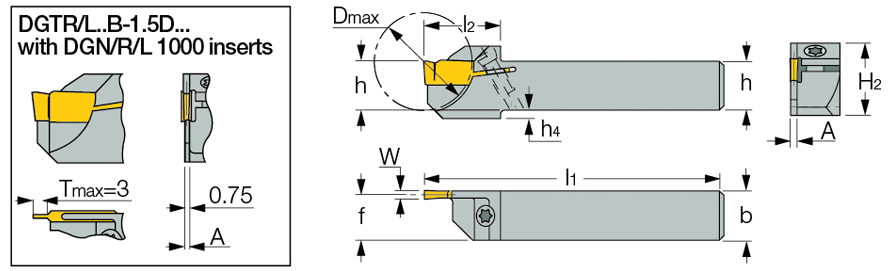

W min W max h b h1 A f l2 D max H2 h4 l1 R/L
 1.00  3.30  20.0  20.0  20.0  2.40  18.8  19.5  25.4  23.7  -  120.00  L

  Catalog No
2D
3D
  2301610 Not Available

7000225  SR 16-236 P

7000265  T-15/5
