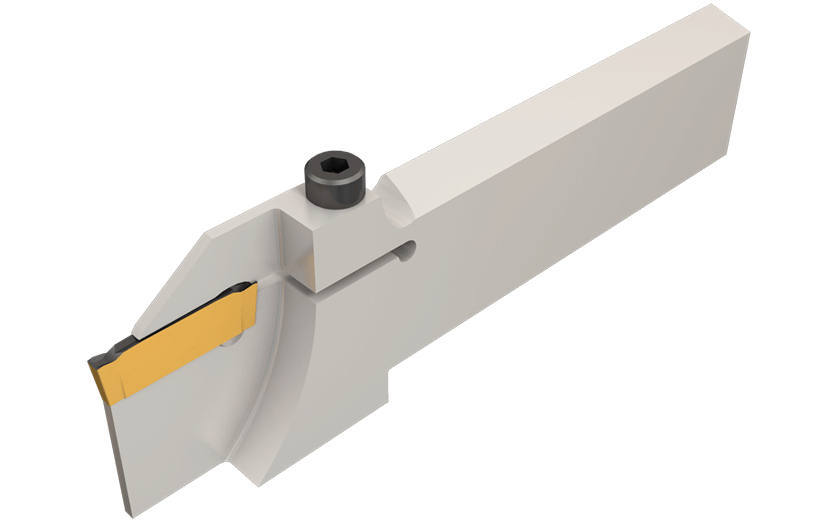

 Turn- Groove Parting Facing      Family: DGFHR/L-B-D..(R/L) Reinforced Type Blades with Screw Clamping       Designation: DGFHL 26B-3D50 Cutting Conditions Machine Power

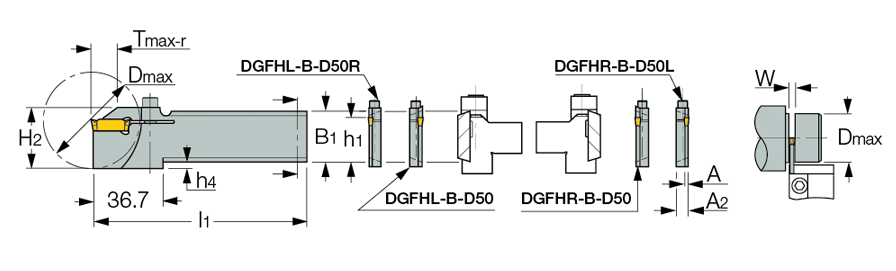

B1 W min For DG: 1.0 insert - modify holder. W max A A2 l1 H2 h1 h4 Tmax-r D max The specified limit refers to the tool. R/L
 26.0  1.00  3.30  2.40  8.0  110.00  31.5  21.4  3.7  18.00  30.0  L

  Catalog No
2D
3D
 Remark
  2301567 Not Available For TRAUB machines model TNC 30, TNM 28, TNS 26/30/42/112, T
NA 300, TNK 260.

4300395  SR 76-1637

7000043  HW 4.0
