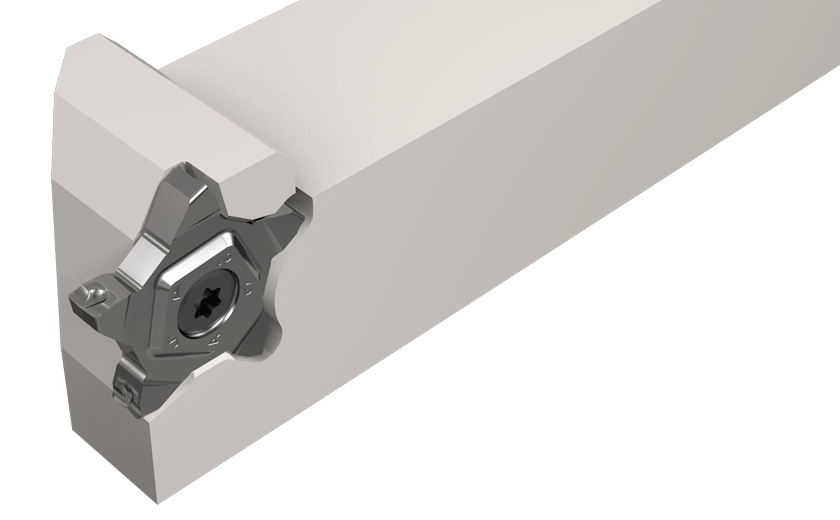

 Turn- Groove Parting Facing      Family: PCHR/L Grooving Parting and Recessing Holders for 5 Edged Inserts       Designation: PCHR 32-34 Cutting Conditions Machine Power

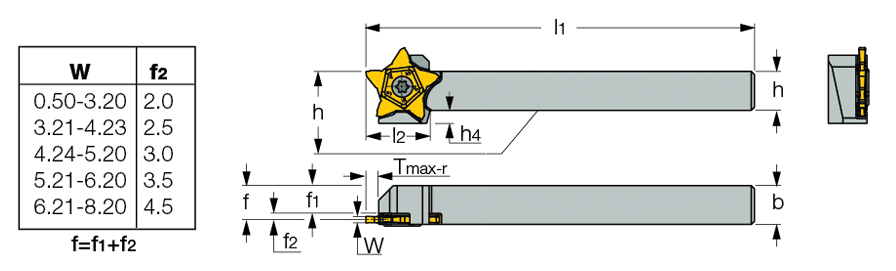

h b W min W max h1 f l1 l2 h4 R/L
 32.0  32.0  2.00  4.00  32.0  28.0  129.50  31.0  -  R

  Catalog No
2D
3D
  2302214 Not Available Not Available

7002773  SR 16-212-01397

7002778  T-2010/5
