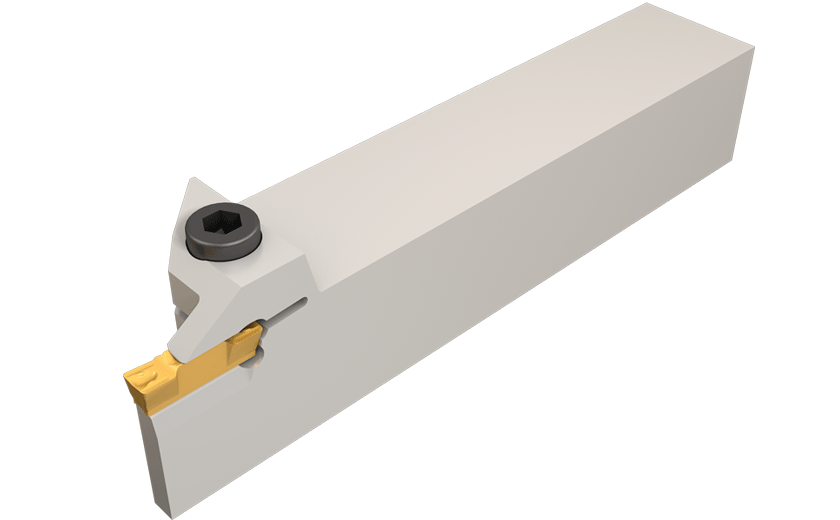

 Turn- Groove Parting Facing      Family: HELIR/L External Holder for Turning, Grooving and Parting       Designation: HELIR 2020-3T12 Cutting Conditions Machine Power

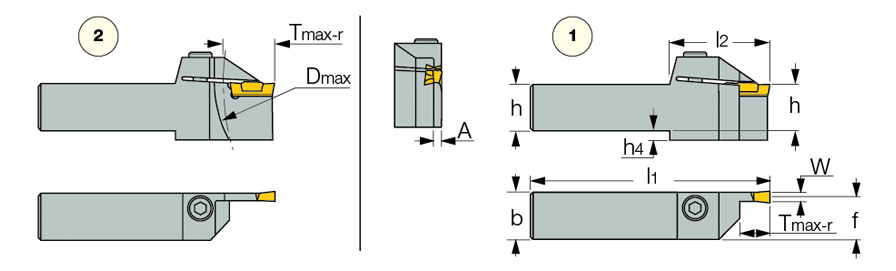

W Tmax-r D max Limited by part diameter. h h1 b f l1 l2 A h4 Fig R/L S1
 3.00  12.00  -  20.0  20.0  20.0  18.8  135.00  29.0  2.40  -  1  R

  Catalog No
2D
3D
  2500508

7000043  HW 4.0

7001846  SR M5X20 DIN 912
