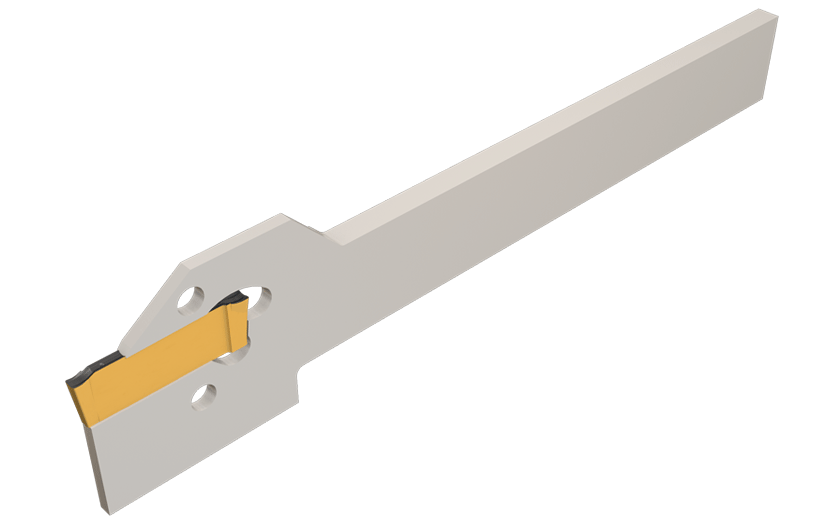

 Turn- Groove Parting Facing      Family: DGFS Blades for Multi-Spindle Machines, Replacement for HSS and Brazed Tools       Designation: DGFS 0-17-3 Cutting Conditions Machine Power

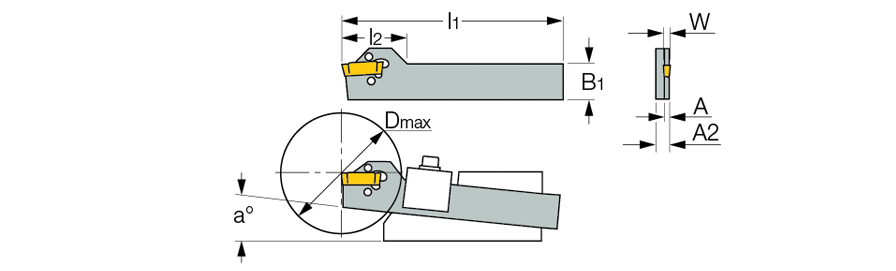

B1 W min For DG: 1.0 insert - modify holder. W max D max A A2 l1 l2 a°
 17.4  1.00  3.30  60.0  2.40  3.2  110.00  32.0  0

  Catalog No
2D
3D
 Remark
  2394336 Not Available TOOLHOLDER ASSEMBLY E-7,47,102-CL,103-CL,161-A-CL,162-A-CL.

7001912  EDG 33B
(Optional, should be ordered separately)
