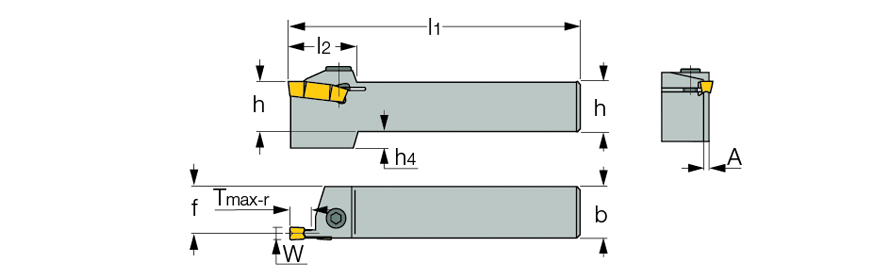

| h |
W min |
W max |
Tmax-r |
b |
l1 |
f |
A |
l2 |
h4 |
R/L |
| 32.0 |
8.00 |
8.00 |
25.00 |
32.0 |
170.00 |
29.0 |
6.00 |
40.0 |
- |
R |
|
Catalog No |
2D |
3D |
Remark |
| 2800554 |
 |
Not Available |
Upper jaw coated with a hard layer for chip deflection.@For
GIDA 80-40-CB ID5, use GHDR ...-8
|
 |
HW 5.0 |
|
 |
SR M6X25 DIN 912 |
|
|
|
|
|
|
