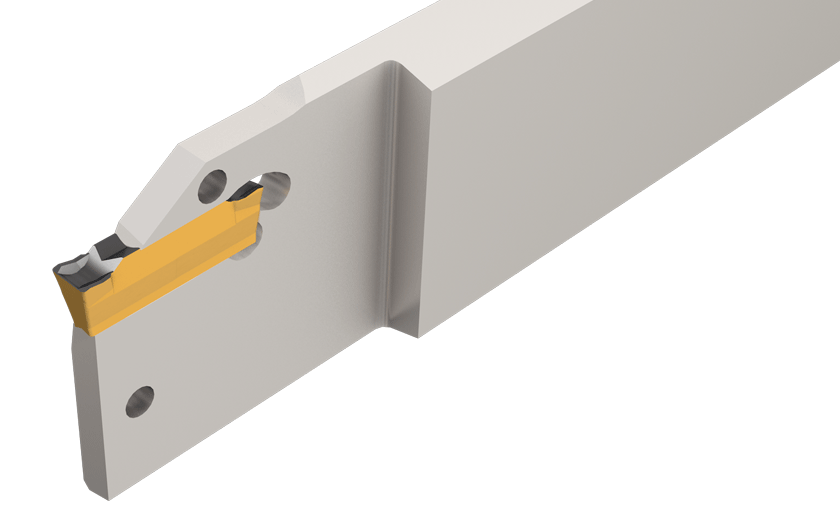

 Turn- Groove Parting Facing      Family: DGFHR/L Parting and Grooving Reinforced Blades for DO-GRIP Inserts       Designation: DGFHL 32T22-4 Cutting Conditions Machine Power

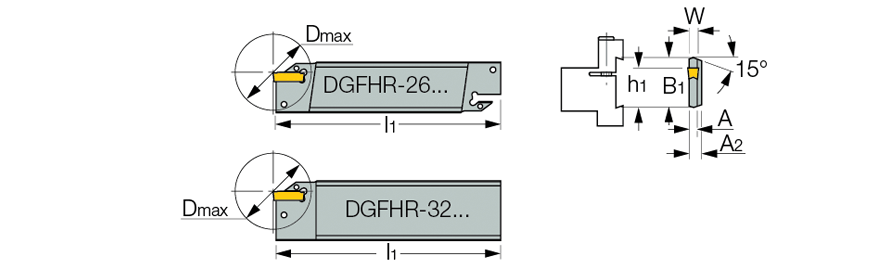

B1 W min For DG_: 1.0 insert - modify holder. W max A2 A l1 h1 D max The specified limit refers to the tool. R/L
 32.0  4.00  4.00  3.4  8.00  110.00  24.8  42.0  L

  Catalog No
2D
3D
 Remark
  2301344 Not Available Extractor: EDG 33A, should be ordered separately.
