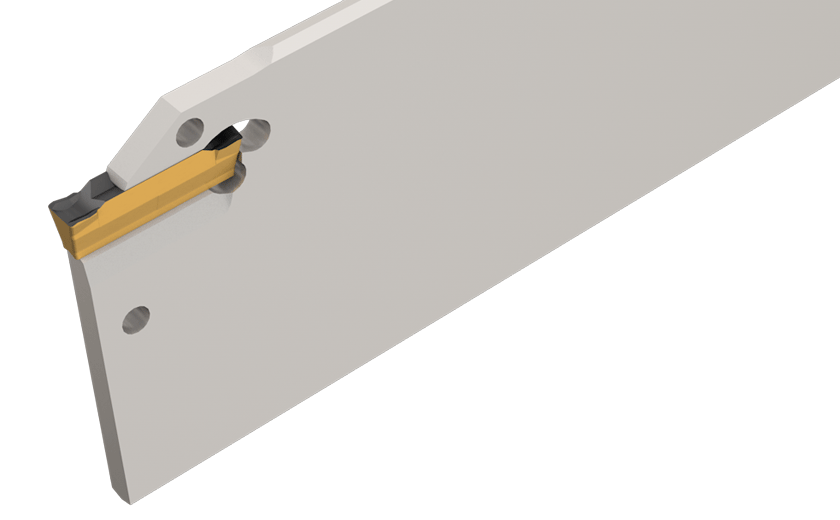

 Turn- Groove Parting Facing      Family: DGFH Parting and Grooving Blades with and without Coolant Holes for DO-GRIP Inserts       Designation: DGFH 32-6 Cutting Conditions Machine Power

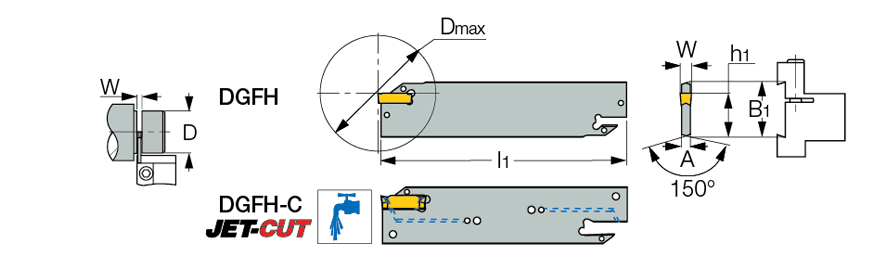

B1 W min For DG: 1.0 insert - modify holder. W max A l1 h1 D max
 32.0  6.00  6.35  5.20  150.00  24.8  120.0

  Catalog No
2D
3D
  2301268 Not Available

7001923  EDG 33A
(Optional, should be ordered separately)
