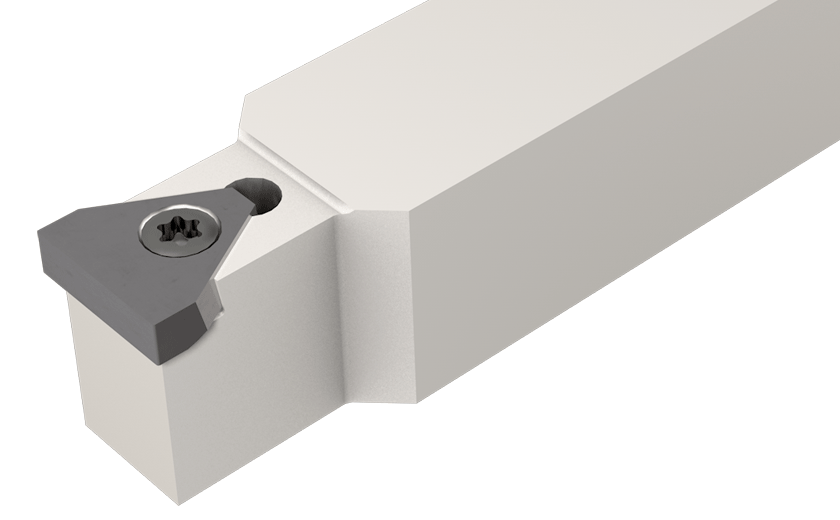

 Turn- Groove Parting Facing      Family: SXCNN External Toolholders for Wide Specially Tailored Profile Inserts       Designation: SXCNN 1414 K13-05 Cutting Conditions Machine Power

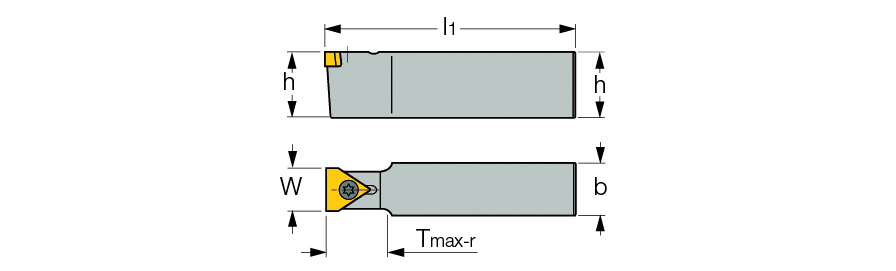

W Tmax-r h1 h b l1
 13.00  23.00  14.0  14.0  14.0  125.00

  Catalog No
2D
3D
  2800959 Not Available

7000269  T-20/5

7002283  SR 76-2068
