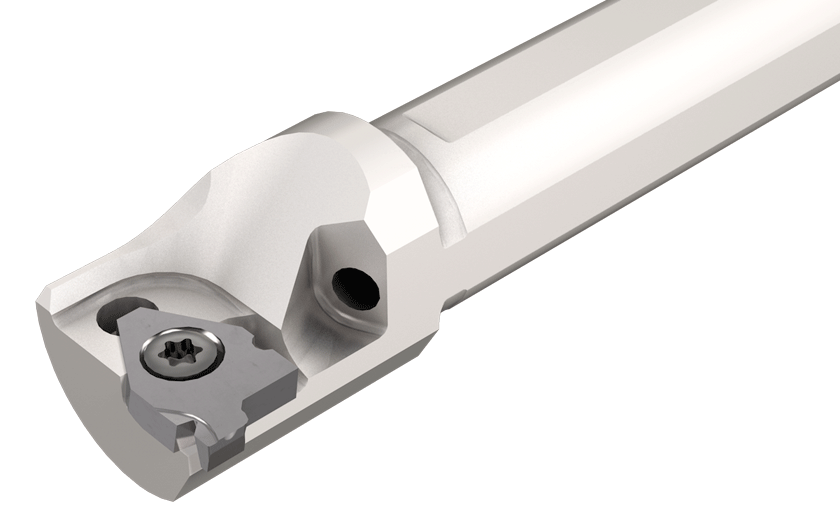

 Turn- Groove Parting Facing      Family: SXCIR/L Internal Toolholders for Specially Tailored Profile Insets       Designation: SXCIR 16-14 Cutting Conditions Machine Power

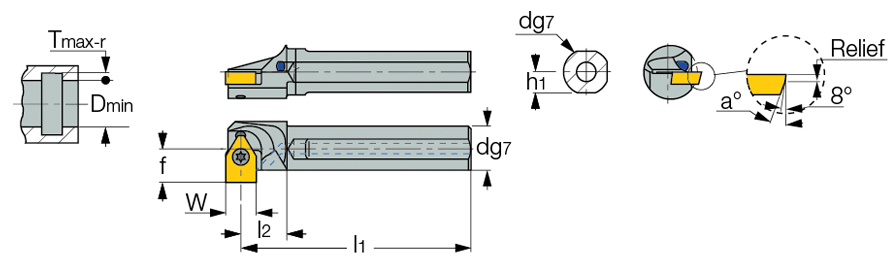

W d l1 l2 f D min Tmax-r h1 a° Dimensions for insert modification. Relief Dimensions for insert modification.
 14.50  16.00  125.00  20.0  11.5  30.00  3.00  7.5  15.00  2.0

  Catalog No
2D
3D
 Remark
  2801401 Not Available Not Available On requset.

7000265  T-15/5

7000818  PL 16

7002282  SR 76-2067
