 Turn- Groove Parting Facing      Family: GAFG-R/L-8 Adapters for face machining, Dmin 80 mm.       Designation: GAFG 105R-8 Cutting Conditions Machine Power

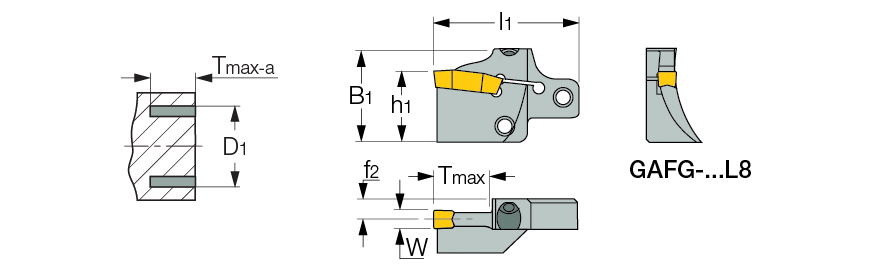

W D1 min Minimum penetration diameter. D1 max Maximum penetration diameter. Tmax-a For GIFG-8 & GDMY-8 Tmax=25 mm for D range. f2 h1 B1 l1
 8.00  105.0  160.0  25.0  9.00  32.0  42.0  63.50

  Catalog No
2D
3D
  2800565 Not Available
