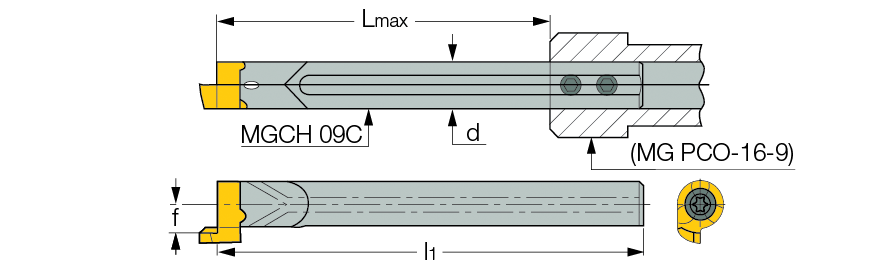

 Turn- Groove Parting Facing      Family: MGCH-C Face Machining Solid Carbide Bars for Dmin 12 - Dmax 19mm Penetration Range, Using GFQR Inserts       Designation: MGCH 09C Cutting Conditions Machine Power


D min d l1 L max f
 12.00  9.00  83.50  65.0  5.5

  Catalog No
2D
3D
  2800997 Not Available

7000265  T-15/5

7002354  SR 76-2145
