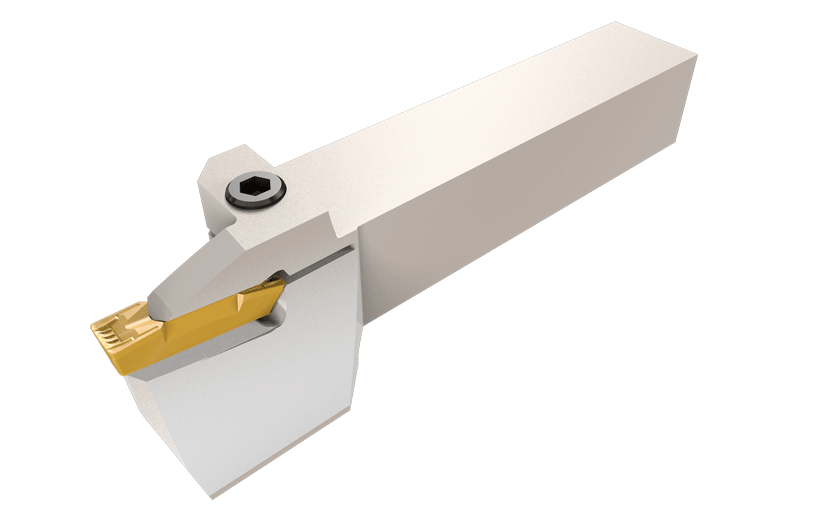

 Turn- Groove Parting Facing      Family: GHFG-R/L-8 Holders for face grooving and turning Dmin. 50 mm. Can machine along a shaft.       Designation: GHFG 25-50L-8 Cutting Conditions Machine Power

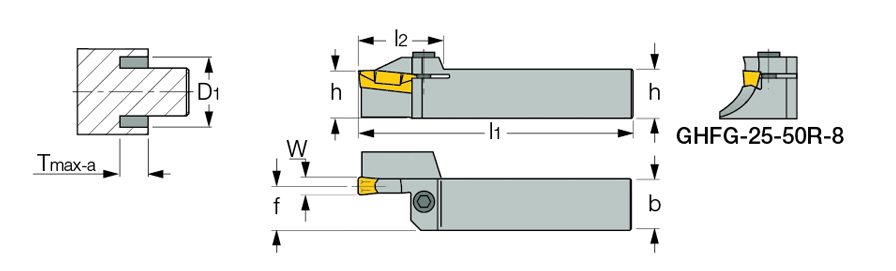

Tmax-a D1 min Minimum penetration diameter. D1 max Maximum penetration diameter. h h1 b W l1 l2 f R/L
 25.0  50.0  64.0  25.0  25.0  25.0  8.00  150.00  41.0  22.0  L

  Catalog No
2D
3D
  2800673 Not Available

7000045  HW 5.0

7001843  SR M6X25 DIN 912
