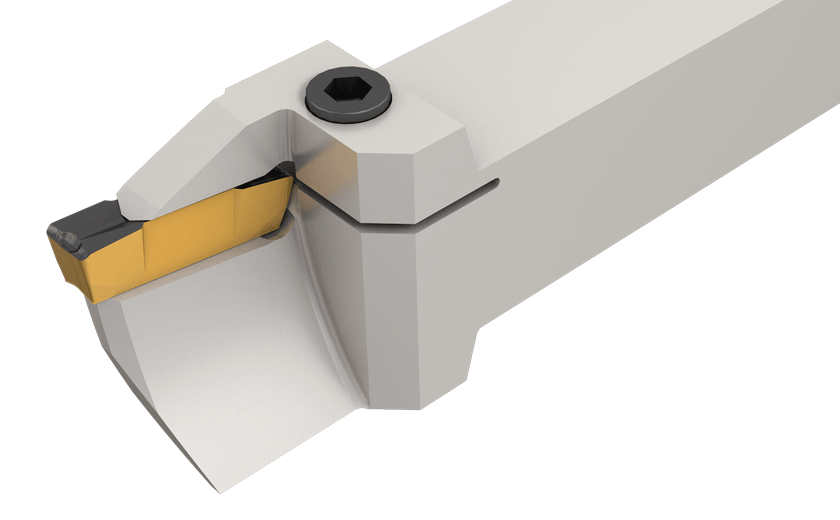

 Turn- Groove Parting Facing      Family: GHFGR/L-8 Holders for face grooving and turning Dmin. 80 mm.       Designation: GHFGL 32-80-8 Cutting Conditions Machine Power

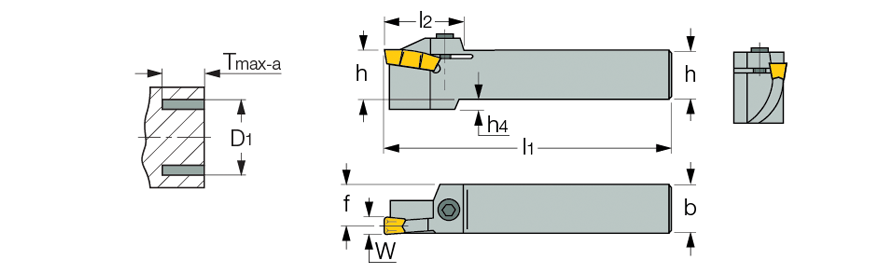

Tmax-a D1 min Minimum penetration diameter. D1 max Maximum penetration diameter. h h1 b W l1 l2 f h4 R/L
 23.0  80.0  115.0  32.0  32.0  32.0  8.00  170.00  43.5  28.3  -  L

  Catalog No
2D
3D
  2800215 Not Available

7000045  HW 5.0

7001842  SR M6X20 DIN 912
