 Turn- Groove Parting Facing      Family: HFHPR/L-M Perpendicular holders for facing, Dmin. 20mm.       Designation: HFHPL 20M Cutting Conditions Machine Power

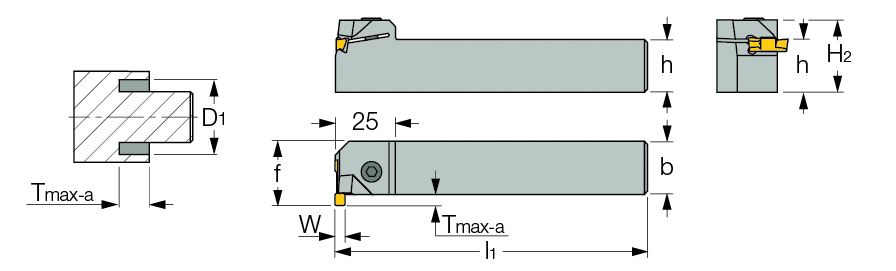

W min W max Tmax-a h h1 b l1 D1 min Minimum penetration diameter. D1 max Maximum penetration diameter. H2 R/L
 3.00  6.00  5.0  20.0  20.0  20.0  130.00  20.0  2,000.0  29.0  L

  Catalog No
2D
3D
  2500260 Not Available

7000045  HW 5.0

7001842  SR M6X20 DIN 912
