 Turn- Groove Parting Facing      Family: HFIR/L-MC Boring bars for facing, Dmin. 20mm.       Designation: HFIR 25MC Cutting Conditions Machine Power

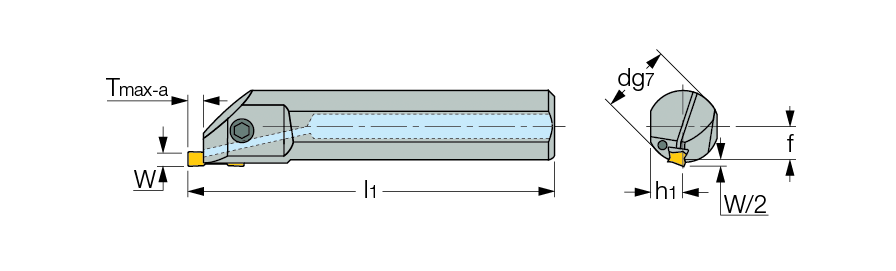

W min W max d l1 f±0.10 h1 R/L Tmax-a
 3.00  6.00  25.00  200.00  11.14  11.5  R  5.0

  Catalog No
2D
3D
 Remark
  2500337 DGN & GRIP 4,5,6 mm inserts can be used with right-hand tool
holders.

7000043  HW 4.0

7000824  PL 25

7001845  SR M5X16 DIN 912
