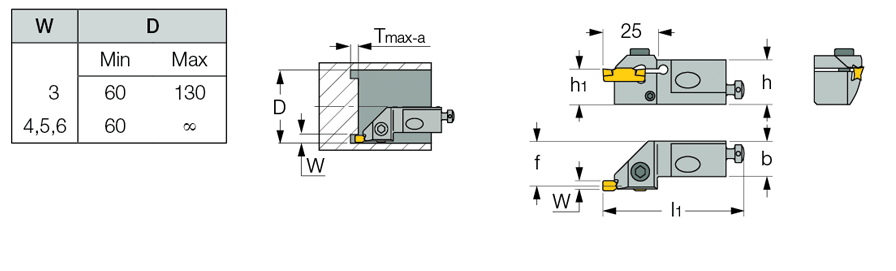

| W min |
W max |
h1 |
b |
h |
l1 |
f |
Tmax-a |
R/L |
| 3.00 |
6.00 |
16.0 |
16.0 |
20.0 |
67.00 |
20.0 |
5.0 |
R |
|
Catalog No |
2D |
3D |
Remark |
| 2500430 |
 |
Not Available |
DGN & GRIP 4,5,6 mm inserts can be used with right-hand tool
holders only.
|
 |
HW 2.0 |
|
|
HW 4.0 |
|
 |
SR M5X20 DIN 912 |
|
 |
SR M4X10 DIN 916 |
|
 |
SR 76-1401 |
|
|
|
|
|
