 Turn- Groove Parting Facing      Family: HGAIR/L-3 Adapters for internal facing. Dmin 12 mm.       Designation: HGAIL 21-3T9 Cutting Conditions Machine Power

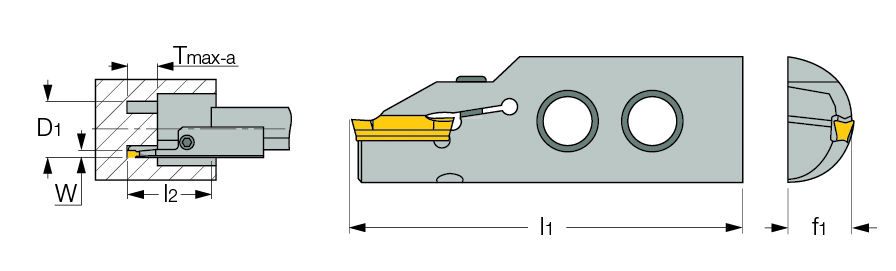

Tmax-a W D1 min Minimum penetration diameter. D1 max Maximum penetration diameter. l1 f1 l3 R/L
 9.0  3.00  21.0  25.0  55.00  10.2  21.0  L

  Catalog No
2D
3D
 Remark
  2550094 Not Available HGPL 3003Y for left-hand adapters only.

7000225  SR 16-236 P

7000264  T-15/3
