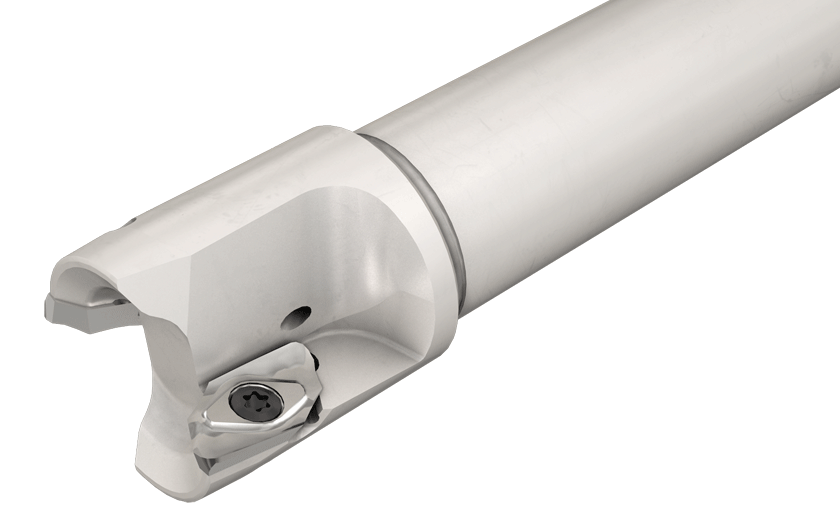

| Milling Family: HM90 EAL-16 Long reach endmills for machining aluminum, using HM90 APCR 1605 inserts. Designation: HM90 EAL-D40-C40L250-16 |
  |
|
|
|
|

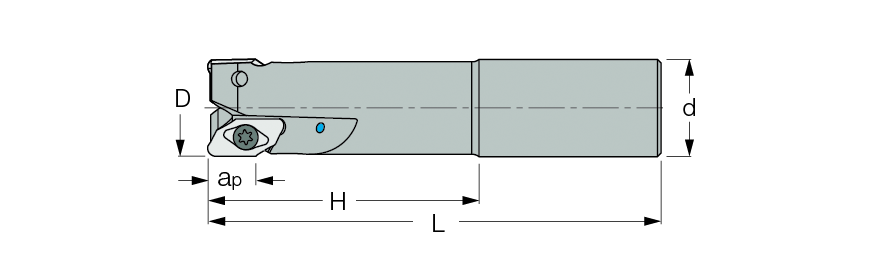

| D |
Z |
H |
L |
d |
Shank |
RPM max |
Rd° |
Cool |
Kg |
Ap |
| 40.00 |
2 |
80.00 |
250.00 |
40.00 |
C |
36809 |
16.90 |
Y |
2.20 |
15.80 |
|
Catalog No |
2D |
3D |
Remark |
| 3102881 |
 |
Not Available |
(1) DOC changes according to insert radius. 15.8 is the valu
e for HM90 APCR 160520R-P. and Ramp down angle is 16.9°.
|
 |
BLD T20/M7 |
|
 |
SW6-T |
|
 |
SR 14-0180 |
|
|
|
|
|
|
