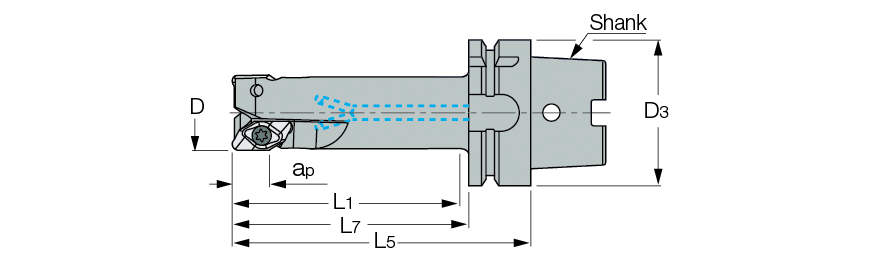

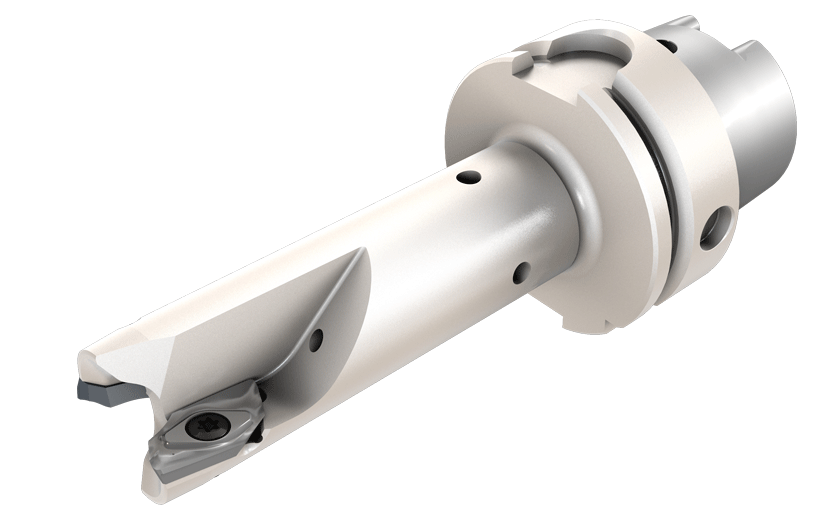

| Milling Family: HM90 EAL-HSK63A-16 Endmills with integral HSK adaptation for machining aluminum, using HM90 APCR 1605.. inserts. Designation: HM90 EAL40-L120-HSK63A-16 |
  |
|
|
|
|
| D |
L1 |
Z |
L7 |
L5 |
RPM max |
Rd° |
Shank |
Ap |
Kg |
| 40.00 |
117.0 |
2 |
120.00 |
146.00 |
36800 |
16.00 |
HSK A 63 |
15.80 |
1.43 |
|
Catalog No |
2D |
3D |
Remark |
| 3103164 |
 |
 |
Balanced to G2.5/Max RPM.
|
 |
BLD T20/M7 |
|
 |
SW6-T |
|
 |
SR 14-0180 |
|
 |
G0 PATE ALU. 2Gr |
|
|
|
|
|
|
