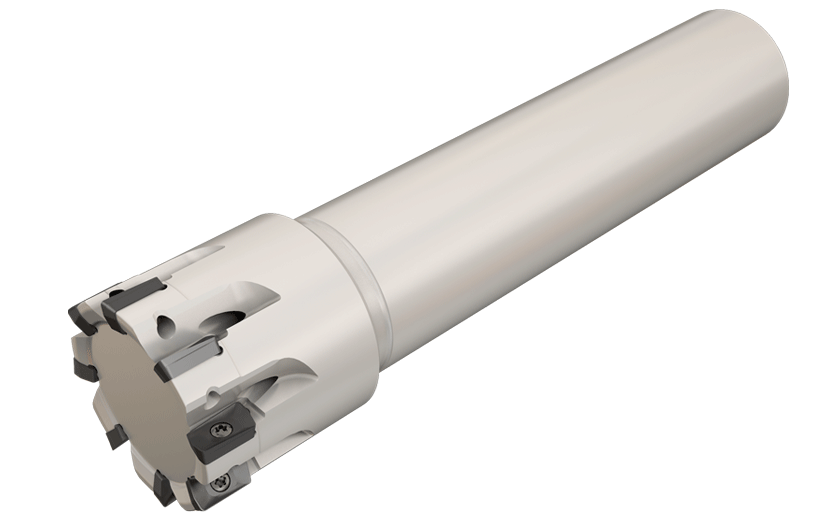

 Milling      Family: HP E90AN-07 Endmills using HELIPLUS HP ANKT 0702 inserts.       Designation: HP E90AN-D16-4-W16-07 Cutting Conditions Machine Power

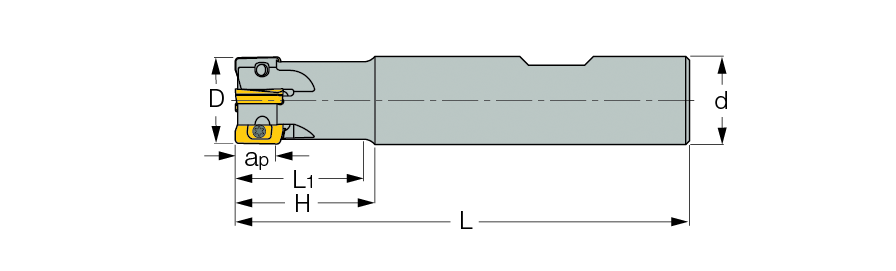

D Z H Ap L1 L Rd° d Shank C-Cylindrical, W-Weldon. Cool Kg
 16.00  4  20.00  7.70  24.5  85.00  3.20  16.00  W  -  0.15

  Catalog No
2D
3D
  3103885 Not Available

7003118  T-6/51
