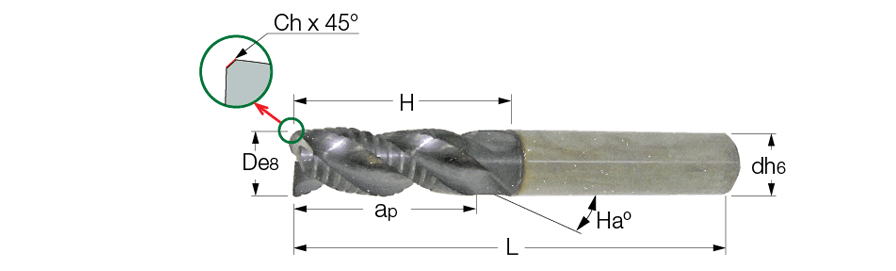

| Milling Family: ECP-E4L Long Sold carbide endmills with a chip splitting cutting edge. 4 flute, 38° helix angle. Designation: ECP-E4L 16-34/50C16S100 |
  |
|
|
|
|
| D |
d |
Ap |
H |
L |
Flut |
Ha° |
Shank  |
Ch |
| 16.00 |
16.00 |
34.00 |
50.00 |
100.00 |
4 |
38.0 |
C |
0.50X45 |
|
Catalog No |
Grade |
Alternative |
2D |
3D |
| 5622222 |
IC900 |
|
Not Available |
Not Available |
|
|
|
|
| click on for individual picture |
|
|
