 Milling      Family: HM90 F90AP-10 90° Face Mills with HM90 APKT 1003... Inserts       Designation: HM90 F90AP D50-7-22


Facing   Shouldering   Slotting   Ramp down   Counter boring

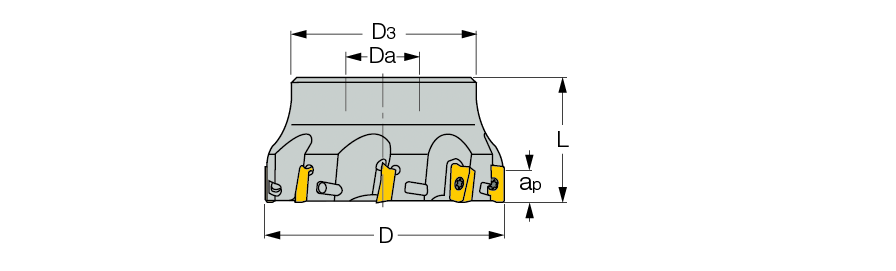

D Z ap L Da Rd° RPM max Arbor For adaptation click on More Info Kg
 50.00   7   10.00   40.00   22.00   1.4   28284   A   0.35

  Catalog No Primary View
File (2D)		 Model (3D) Light Model (3D) Detail
  3102071 Not Available
3D Required


7002441  SR 34-505/HG  Details

7002212  SW4-SD

7002348  BLD T08/M7

7001982  SR M10X30  Details


For adaptation, click on "More Info".
