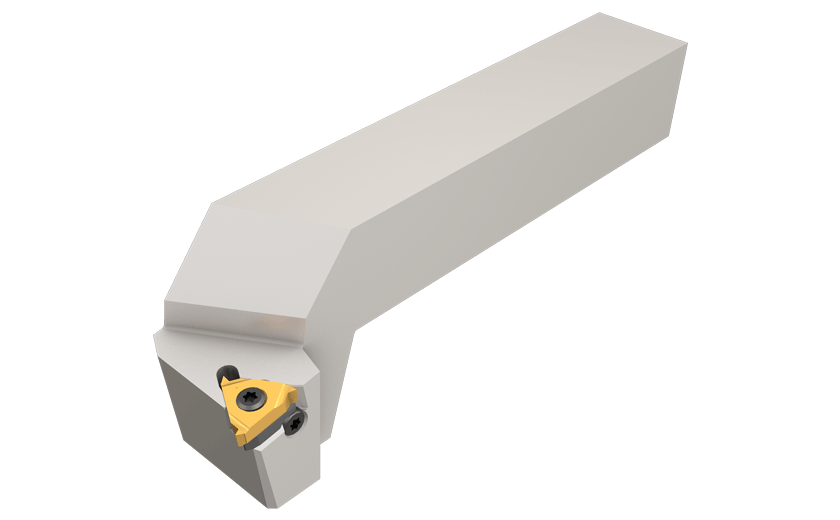

 Threading      Family: SER-D External Threading, Drophead Toolholders       Designation: SER 2525 M22D
 Right-hand shown

External threading

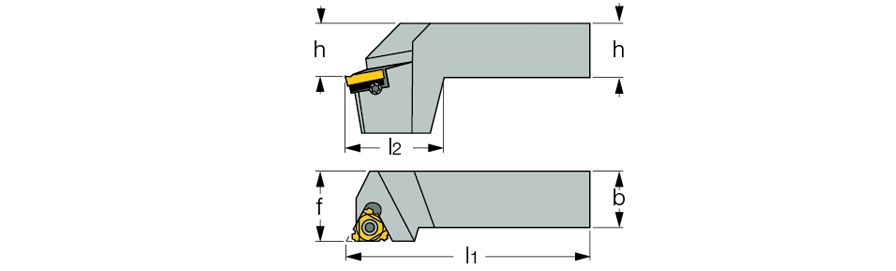

h b l1 f l2 R/L
 25.0   25.0   150.00   32.0   38.0   R

  Catalog No Primary View
File (2D)		 Model (3D) Light Model (3D) Detail
  3800221 Not Available
3D Required


7060121  S22  Details

7000269  T-20/5

7060295  AE22

7060254  A22  Details


All toolholders are made for 1.5 helix angle.
For GTGA inserts, use anvil AE 16-0
