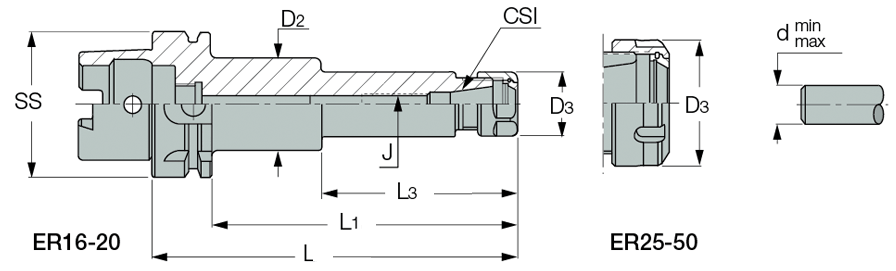

| S.s |
C.Si |
d min |
d max |
D3 |
D2 |
L |
L1 |
L3 |
J |
Kg |
| 63 |
ER32 |
2.0 |
20.0 |
50.00 |
40.40 |
80.00 |
54.0 |
31.00 |
M22X1.5 |
1.05 |
|
Catalog No |
2D |
3D |
Remark |
| 4561150 |
 |
 |
Balanced to G2.5/20,000 RPM.
|
 |
NUT ER32 TOP |
|
 |
NUT ER32 TOP BIN
(Optional, should be ordered separately) |
|
 |
WRENCH ER32
(Optional, should be ordered separately) |
|
 |
PRESET SCREW 22X1.5
(Optional, should be ordered separately) |
|
 |
PRESET ER-JET 22X1.5L
(Optional, should be ordered separately) |
|
|
PRESET ER-JET 22X1.5
(Optional, should be ordered separately) |
|
 |
COOLING TUBE HSK A 63
(Optional, should be ordered separately) |
|
 |
WRENCH COOL TUBE HSK 63
(Optional, should be ordered separately) |
|
|
|
|
|
