 Tooling Systems      Family: GTIN ER-ISO (Tapping) ER Collet Tapping Attachments, Tension and Compression ISO Type for CNC Milling and Turret Lathe Machines       Designation: GTIN ER32 ISO 3.55X2.80


HARDNESS 58-60  SURFACE FINISH N5

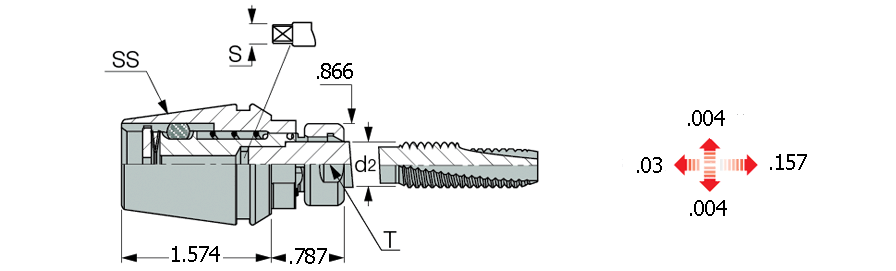

SS d2 S Tap min Tap max T Lbs
 ER32   .140   .110   M4.5   M4.5   .787   .490

  Catalog No Primary View
File (2D)		 Model (3D) Light Model (3D) Detail
  4548075 Not Available
3D Required		 Not Available
3D Required


4502930  GTIN ER32 NUT


For adaptation Click on "More Info".
No coolant should be induced through the tapping collet, as it will cause malfuncationing of the mechanism.
