 Milling      Family: OFMT 07 Octagonal Milling Inserts for General Use       Designation: OFMT 07T3-AER-76
 Economical solution

Facing   Helical interpolation   Ramp down   Slanted shoulder. & chamfer.

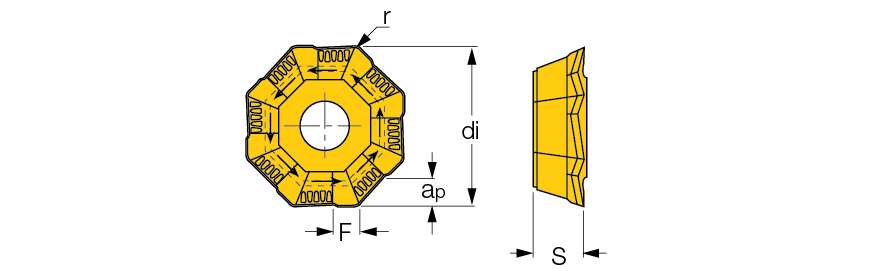

di ap F r S fz(min) fz(max)
  17.80   3.40   1.75   0.60   4.55   0.15   0.25

  Catalog No Grade Alternative Primary View
File (2D)		 Model (3D)
  5601834 IC328 Alternative Not Available
3D Required

  5601844 IC250   Not Available
3D Required

  5601916 IC28 Alternative Not Available
3D Required

  5601962 IC950   Not Available
3D Required

  5606602 IC330 Alternative Not Available
3D Required

  5606603 IC830 Alternative Not Available
3D Required

  5697558 IC928 Alternative Not Available
3D Required

  5699890 IC4050   Not Available
3D Required
