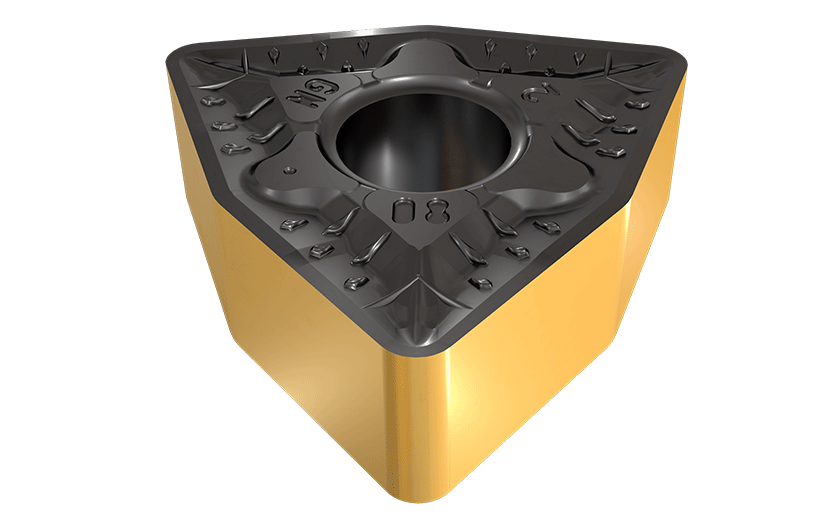

 ISO-Turning      Family: WNMG-GN Double-Sided Trigon Inserts for General Applications       Designation: WNMG 06T312-GN


Ext. 80° trigon 95 approach   Int. 80° trigon 95° approach

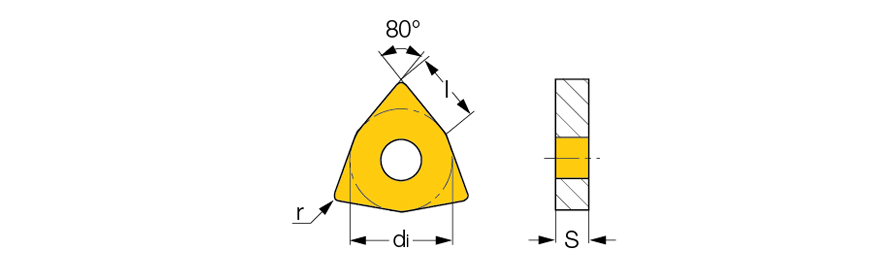

l di S r ft(min) ft(max) ap(min) ap(max)
  6.52   9.52   3.90   1.20   0.18   0.45   1.50   4.00

  Catalog No Grade Alternative Primary View
File (2D)		 Model (3D)
  5507299 IC9150 Alternative

  5550532 IC8250


For dimensions and tolerances, see more info.
