 Tooling Systems      Family: SRGCR/L Screw Lock Toolholders for Round Inserts with 7° Clearance Angle       Designation: SRGCR 2020K-10

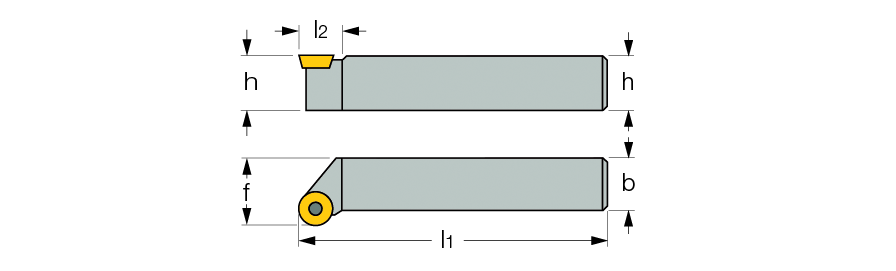

 Right-hand shown

Ext. round face & turn
h b l1 l2 f Ga° Gr° R/L
  20.0   20.0   125.00   14.0   25.0   0   0   R

  Catalog No Primary View
File (2D)		 Model (3D) Detail Model (3D) Light
  3600936 Not Available
3D Required		 Not Available
3D Required


7000224  7000224  SR 16-236  Details

7000265  7000265  T-15/5
