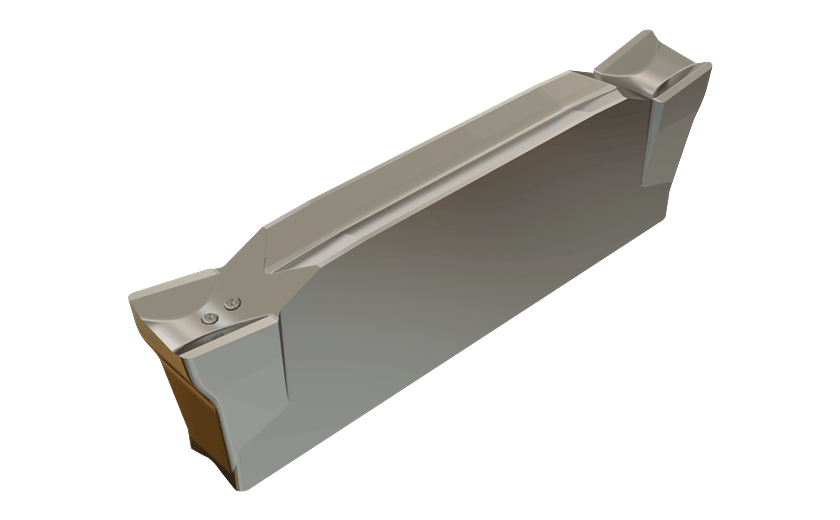

 Turn-Groove      Family: DGR/L-C DGRC/LC-C Double-Sided Parting Insert, for Parting Bars, Hard Materials and Tough Applications       Designation: DGR 4003C-4D


Parting

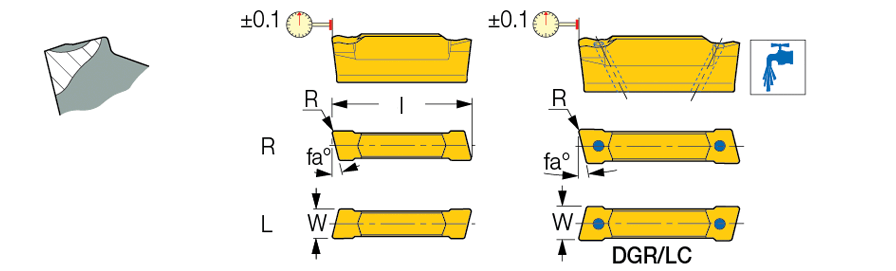

W R Tmax-r fa° l Ref. fg(min) fg(max)
  4.00   0.30   -   4.0   18.8   0.08   0.20

  Catalog No Grade Alternative Primary View
File (2D)		 Model (3D)
  6002366 IC20 Alternative

  6002368 IC354 Alternative

  6002465 IC328 Alternative

  6002952 IC908 Alternative

  6003062 IC1028 Alternative

  6004522 IC830 Alternative


The feed values for grade IC20 should be decreased by 50%.
