 ISO-Turning      Family: DSBNR/L 75° Lead Angle R-Clamp External Turning Tools for ISO Negative SNMG Inserts       Designation: DSBNL 3232P-15

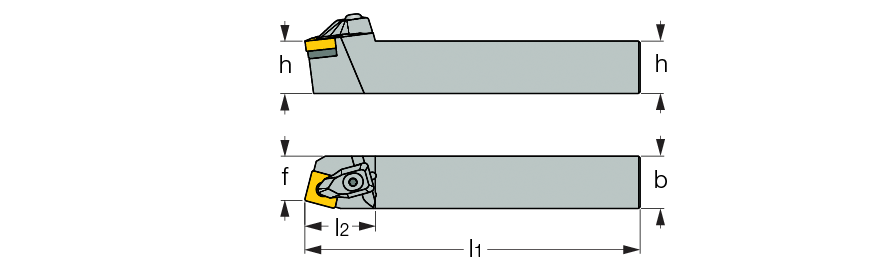

 Right-hand shown

Ext. 90° square 75° approach
h b l1 l2 f Ga° Gr° R/L
  32.0   32.0   170.00   40.0   27.0   -7.4   -4.3   L

  Catalog No Primary View
File (2D)		 Model (3D) Detail Model (3D) Light
  3602786 Not Available
2D Required		 Not Available
3D Required		 Not Available
3D Required


5560119  5560119  RST 54

7005277  7005277  SR 10402265  Details

7005271  7005271  LCGR-5

7005279  7005279  SR 10402267  Details

7091853  7091853  KSP 5

7000043  7000043  HW 4.0
