 Turn-Groove      Family: C#-MAHPD Perpendicular Holders for Parting, Grooving, Turning and Facing Adapters with CAMFIX Exchangeable Shanks       Designation: C5 MAHPD
 T= See specific adapter dimensions.

COOLANT

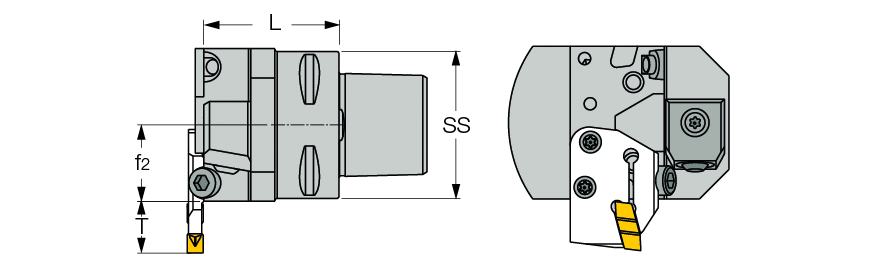

SS L f2
  50   46.00   26.00

  Catalog No Primary View
File (2D)		 Auxiliary View
File (2D)		 Model (3D) Detail Model (3D) Light
  2891683


7003565  7003565  SR M5-04451  Details

7000269  7000269  T-20/5

7000211  7000211  SR 14-519  Details For DGAD, HGAD and PCADR/L adapters. Supplied in the attached plastic bag.

7003102  7003102  SR M6X20-XT  Details For CGPAD, HGPAD, TGPAD and HFPAD adapters. Supplied with the tools.

7000045  7000045  HW 5.0

7002673  7002673  SR M6X6DIN551  Details Used to prevent chips from entering the upper locking screw hole when it is not used for the adaptation. Supplied in the attached plastic bag.

7000899  7000899  EZ 125

7000250  7000250  SR 76-1022  Details

4305903  4305903  EZA-21414
