 Turn-Groove      Family: SGTBU/SGTBN Blocks for Various Parting and Grooving Blades       Designation: SGTBU 16-5G

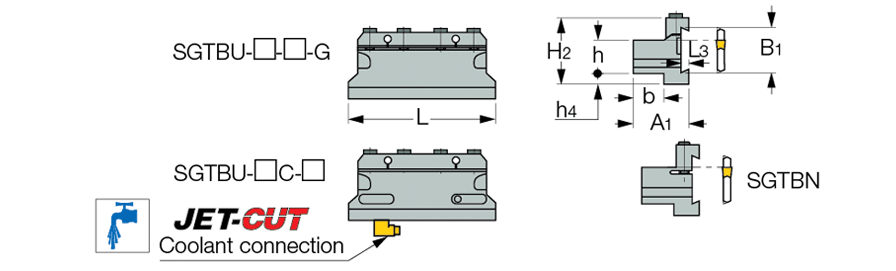

h b B1 A1 H2 h4 L3 L
  16.0   17.0   26.0   34.00   43.0   13.0   4.00   86.00

  Catalog No Primary View
File (2D)		 Auxiliary View
File (2D)		 Model (3D) Detail Model (3D) Light
  2301025


4300015  4300015  BKU 86

7001844  7001844  SR M6X30DIN912 12.9  Details

7000045  7000045  HW 5.0


Choose blade by B1 dimension
