 Tooling Systems      Family: SC-SEAL Sealed Collets for MAXIN Power Chucks       Designation: SC 20 SEAL 6


100 BAR (1450 PSI) MAX.  HARDNESS 58-60  SURFACE FINISH N5

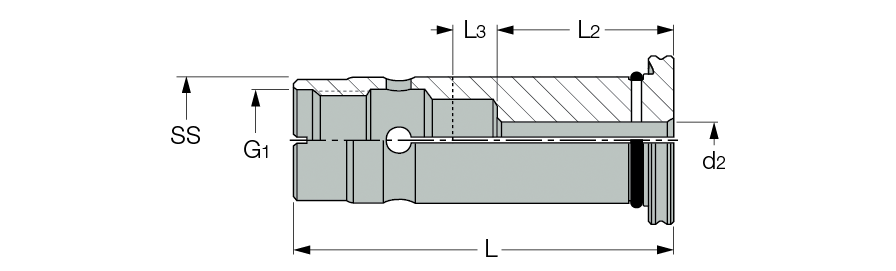

d2 SS L L2 L3 G1
  6.00   20.00   60.00   28.00   7.00   M16

  Catalog No Primary View
File (2D)		 Model (3D) Detail Model (3D) Light
  4505376 Not Available
