 Hole Making      Family: C#-EM-E Drill Holders (DIN1835 Form E) with CAMFIX (ISO 26623-1) Exchangeable, Tapered Shanks       Designation: C8 EM18X75E


RUNOUT (INT) 0.005MM (.0002  HARDNESS 58-60  SURFACE FINISH N5  COOLANT

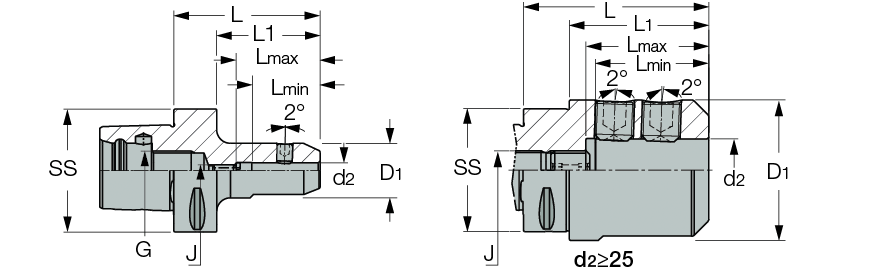

SS d2 D1 L L min L max L1 G J Kg
  80   18.00   50.0   75.00   47.0   52.0   45.0   M20   M12   2.26

  Catalog No Primary View
File (2D)		 Model (3D) Detail Model (3D) Light
  4561541 Not Available
2D Required		 Not Available
3D Required		 Not Available
3D Required


4506530  4506530  PRESET SCREW CAP M12X16B*


The adjustment screw has an internal coolant hole.
