 Tooling Systems      Family: TRIB-SM Grooving Shell Mills with Triple-Edged Precision Ground Inserts       Designation: TRIB 50-22SM 6Z-B
 .

Bottom Shouldering   Internal groove milling   Shouldering   Side slotting

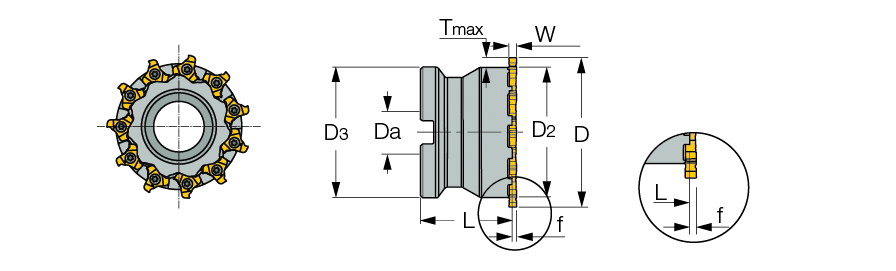

D D2 W minRefer to insert data W maxRefer to insert data Z L Da D3 Kg
  50.00   39.70   4.00   6.50   6   39.00   22.00   39.70   0.24

  Catalog No Primary View
File (2D)		 Model (3D) Detail Model (3D) Light
  2301958


7000224  7000224  SR 16-236  Details

7002096  7002096  BLD T15/S7

7002097  7002097  SW6-T


W, Tmax, f, Refer to insert data
For inserts with W=4.01-6.50 mm, order tools with -B suffix (deeper pockets). For example: TRIB 63-22SM-8Z-B
For adaptation click on "More Info".
