 Tooling Systems      Family: EC-A2 (medium length) 2 Flute, 30° Helix Medium Length, Solid Carbide Endmills, for Hard Materials up to 65 HRc       Designation: EC-A2 140-26C14-85
 Hard Materials

Shouldering   Slotting   Ramp down   Helical interpolation

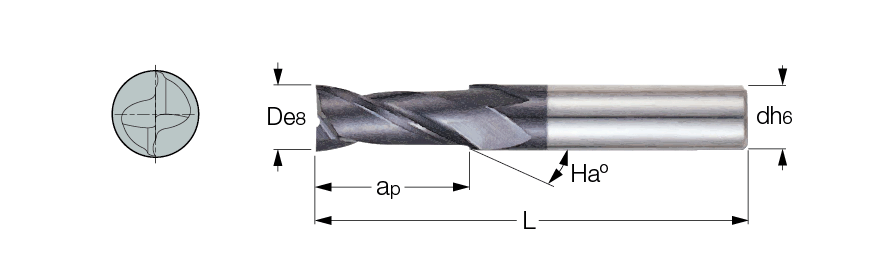

D d ap L Flute Ha° Rd° ShankC-Cylindrical fz(min) fz(max)
  14.00   14.00   26.00   85.00   2   30.0   5.0   C   0.04   0.12

  Catalog No Grade Alternative Primary View
File (2D)		 Model (3D) Detail Model (3D) Light
  5650908 IC903   Not Available
2D Required		 Not Available
3D Required
