 Hole Making      Family: IM63 XMZ-EM-E Endmill Holder DIN1835-E (Whistle Notch) with ISO 26622-1 XMZ Tapered Shanks for Mazak Integrex Machines       Designation: IM63 XMZ EM 08X65 E


RUNOUT (INT) 0.005MM (.0002  HARDNESS 45  SURFACE FINISH N5  COOLANT

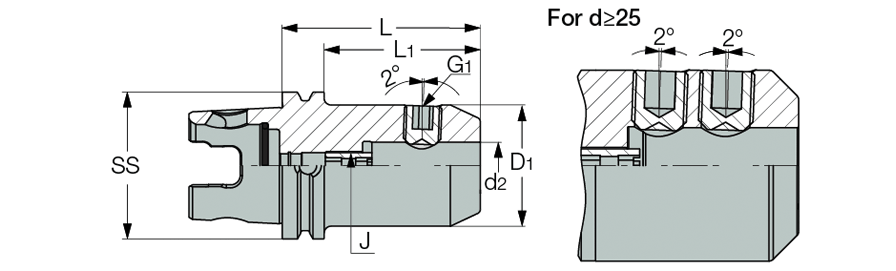

SS d2 D1 L L1 J Key 1Hex key size G1 Key 2Hex key size
  63   8.00   28.0   65.00   47.0   M6   8.00   M8   4.00

  Catalog No Primary View
File (2D)		 Model (3D) Detail Model (3D) Light
  4510022 Not Available
2D Required		 Not Available
3D Required		 Not Available
3D Required

For IM63 XMZ standard details, click on "More Info"
