 Milling      Family: MM EC-3 3 Flute 45° Helix, Interchangeable Solid Carbide Endmill Heads       Designation: MM EC.500B37R015-3T08


Shouldering   Slotting   Ramp down   Helical interpolation   Drill mill   Plunging & recessing

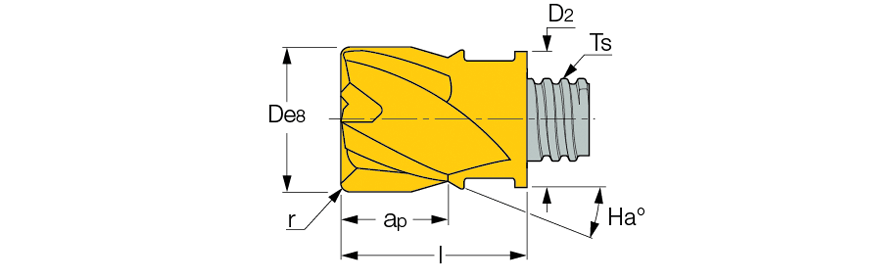

D Flute ap r Ts D2 l Ha° fz(min) fz(max)
  12.70   3   9.50   0.40   T08   12.40   16.50   45.0   0.05   0.10

  Catalog No Grade Alternative Primary View
File (2D)		 Model (3D) Detail Model (3D) Light
  5622120 IC908   Not Available
3D Required


7002616  7002616  MM KEY 10X7
(Optional, should be ordered separately)


For Clamping keys (should be ordered separately), tightening torques and clamping instructions, click on "More Info".
Do not apply lubricant to the threaded connection.
