 Tooling Systems      Family: ECXL-B-4/6 4 & 6 Flute, 45° Helix Extra Long Solid Carbide Endmills       Designation: ECXL160B80-6W16


Shouldering   Slotting

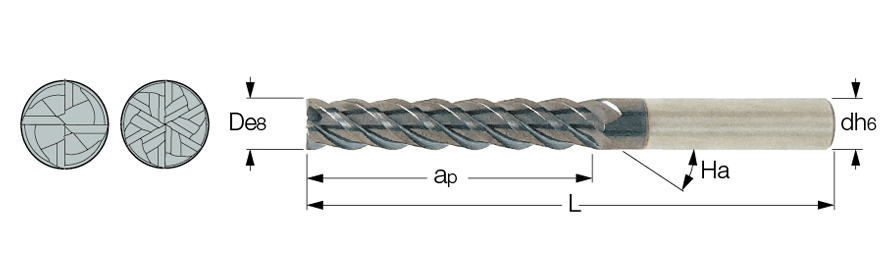

D d ap L Flute Ha° ShankC-Cylindrical, W-Weldon fz(min) fz(max)
  16.00   16.00   80.00   150.00   6   45.0   W   0.05   0.13

  Catalog No Grade Alternative Primary View
File (2D)		 Model (3D) Detail Model (3D) Light
  5621220 IC900   Not Available
3D Required

Smooth cutting in extra long depth.
