 Tooling Systems      Family: DCM-3D (7.5-25.9 mm) Indexable Head Drills with One Flat Shanks, Drilling Depth 3xD       Designation: DCM 115-034-16A-3D


Drilling   COOLANT

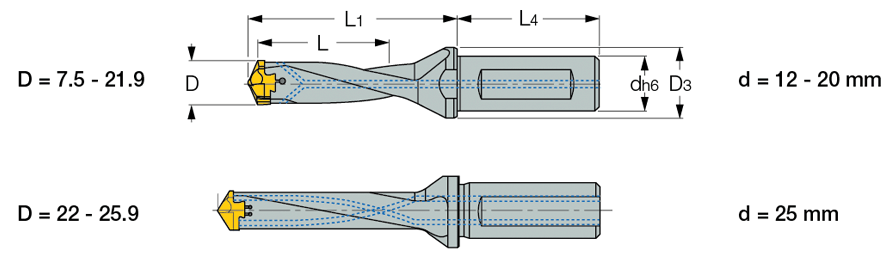

D minDo not mount smaller drilling heads than specified range for drill body. D max L d D3 L1 L4 Po. Size
  11.50   11.90   34.0   16.00   20.00   50.0   48.0   11.0

  Catalog No Primary View
File (2D)		 Model (3D) Detail Model (3D) Light
  3200547 Not Available
3D Required


7002253  7002253  K DCM-11


Drill tolerance: k7
