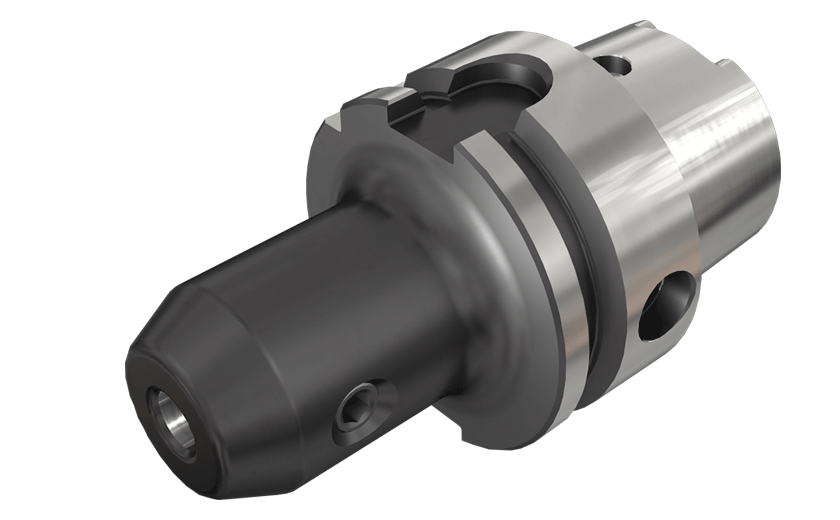

 Milling      Family: HSK A-EM (DIN 1835 Form B) DIN6359 Side Clamp Holders for DIN 1835 Form B Weldon Shanks with HSK DIN69893 Form A Tapered Shanks       Designation: HSK A 100 EM 40X110
 .

RUNOUT (INT) 0.005MM (.0002  HARDNESS 58-60  SURFACE FINISH N5  COOLANT

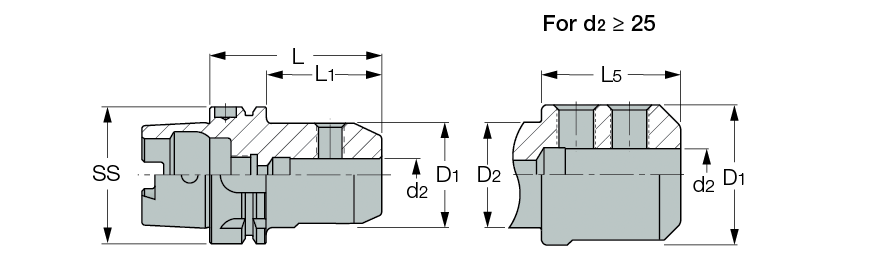

SS d2 D1 D2 L L1 L5 Kg
  100   40.00   85.0   -   110.00   81.0   -   4.50

  Catalog No Primary View
File (2D)		 Model (3D) Detail Model (3D) Light
  4506144


4516008  4516008  SR M20X2X20 DIN1835-B  Details

4561259  4561259  WRENCH COOL TUBE HSK100
(Optional, should be ordered separately)

4511691  4511691  COOLING TUBE HSK A100
(Optional, should be ordered separately)


A cooling tube must be used with all coolant through HSK spindles (should be ordered separately).
For shank dimensions, Click on "More Info".
