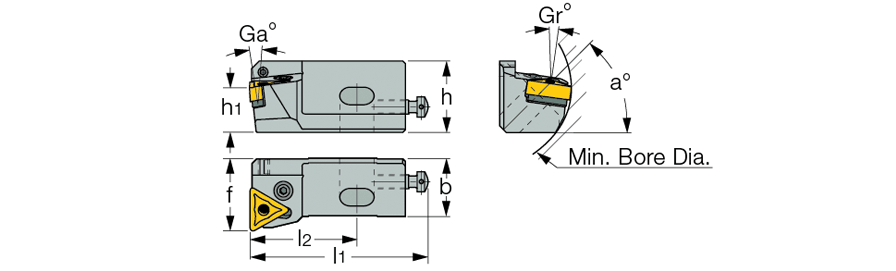

 ISO-Turning      Family: PTFNR-CA 91° Lead Angle Lever Lock Face Turning Cartridge Tools for Negative Triangular Inserts       Designation: PTFNR 16CA-16
 Right-hand shown

Ext. 60° triangle facing   Int. 60° triangle 91° approach
h h1 b l1 l2 f D minFor axial mounting Ga° Gr° a° R/L
  25.0   16.0   20.0   63.00   38.0   25.0   55.00   -6   -8   45   R

  Catalog No Primary View
File (2D)		 Model (3D) Detail Model (3D) Light
  3694498 Not Available
3D Required


5560133  5560133  TTN 322

5502597  5502597  TTN 332
(Optional, should be ordered separately)		   Use for TNMG 32..(1603..) inserts

7000167  7000167  SP 3

7000099  7000099  PN 3-4

7000079  7000079  LR 3

7000203  7000203  SR 117-2014  Details

7000037  7000037  HW 2.5

7002102  7002102  SR 76-1401  Details

7002065  7002065  SR M4X8DIN913 45H  Details

7000036  7000036  HW 2.0
